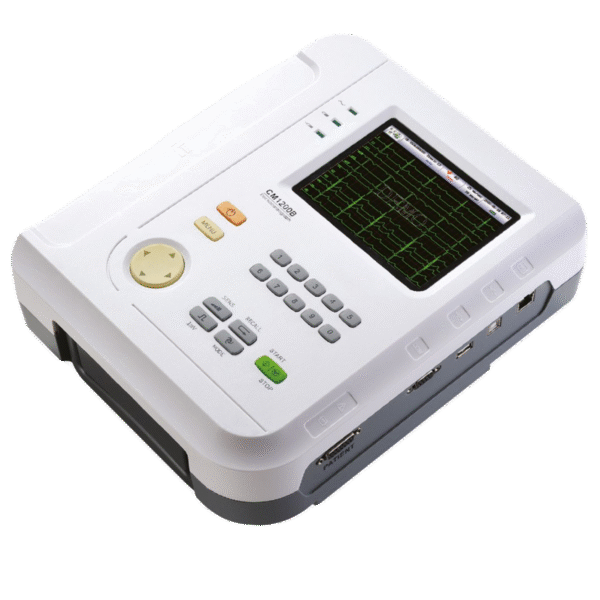

Electrocardiogram 12, 6, 3- Channel Machine

Introducing the TAB-MEDICAL  12, 6, 3-Channel ECG Machine with 5.6-inch LCD Display Printing System. Crafted with precision and innovation, it boasts a high-resolution image on its LCD display, ensuring easy observation and unparalleled clarity.

Its robust aluminium alloy internal frame provides shockproof and anti-drop protection, coupled with anti-interference capabilities for seamless operation.

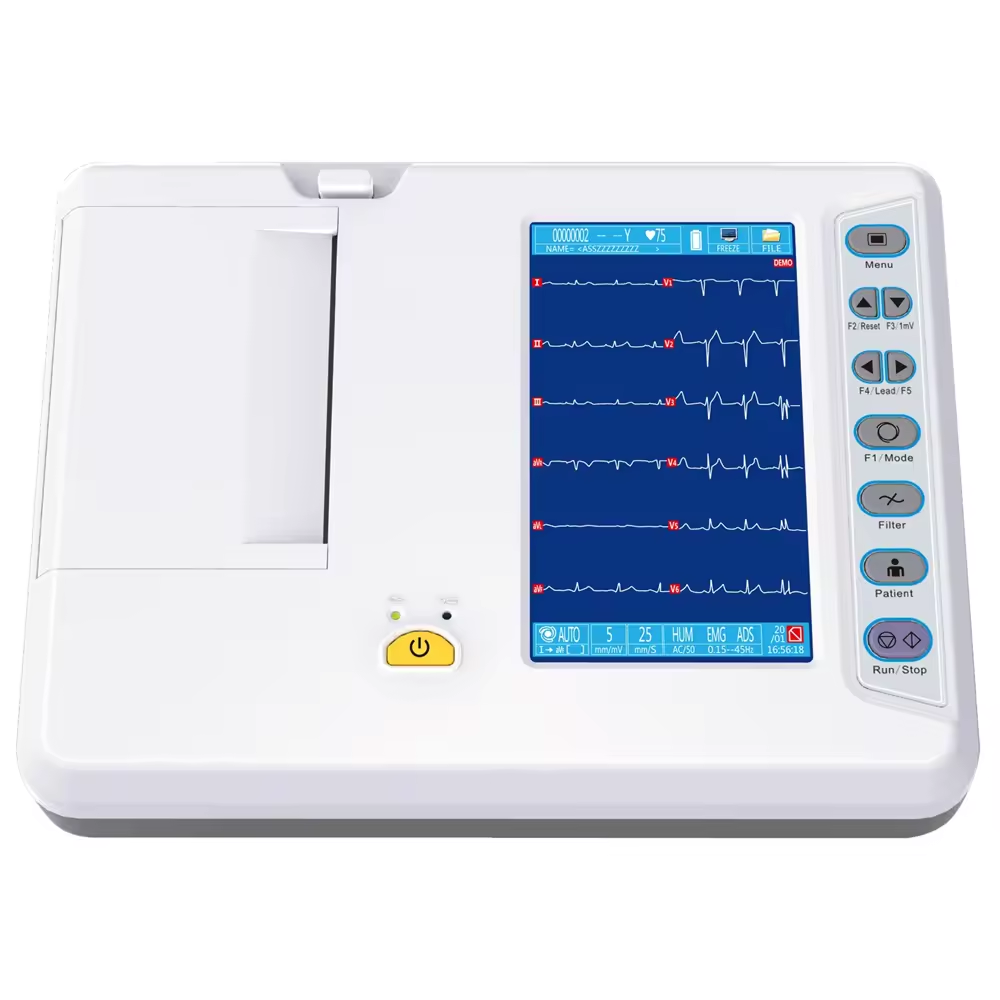

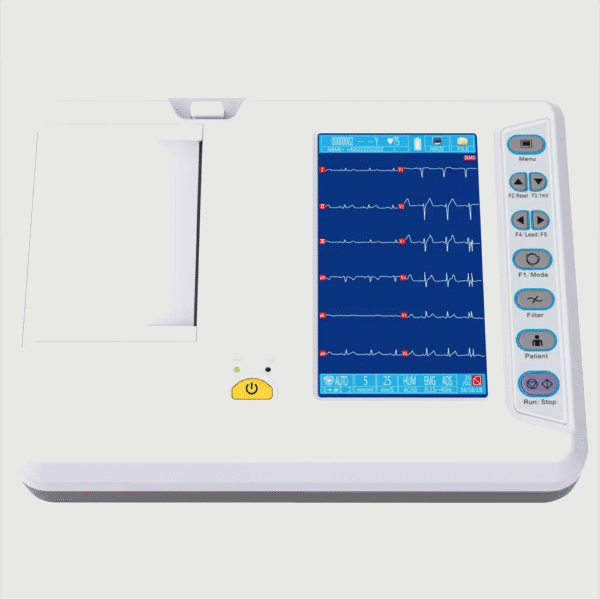

ECG-3306B Electrocardiogram 3RAY 6 Channel Machine

• Portable and delicate design, easy to operate.
• 12 leads synchronous acquisition, sampling rate 32000Hz.
• High accuracy digital filter, automatic baseline adjustment.
• Working modes: Manual, Automatic, R-R, Store.
• 112mm, 6 channel recording, recording mode 3ch+, 3ch+++, 6ch; With auto-interpretation to identify over 200 kinds of abnormal ECG.
• 800×480 graphic 7” color LCD to simultaneously display ECG information.
• 40 patient cases storage and replay.
• Rich menu settings to meet different using needs.
• Built-in 2200mAh rechargeable Li-ion battery. Charging time about 2.5 hours and continuous working time about 9 hours.

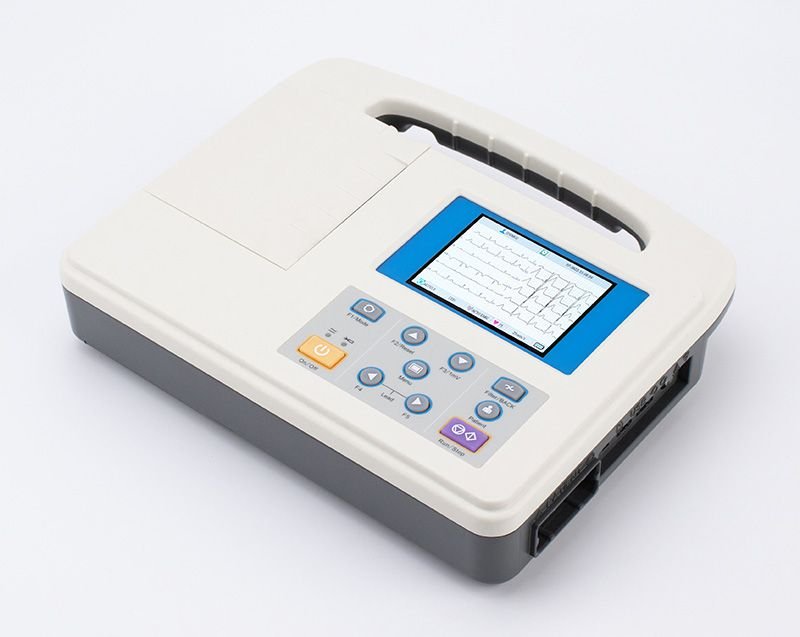

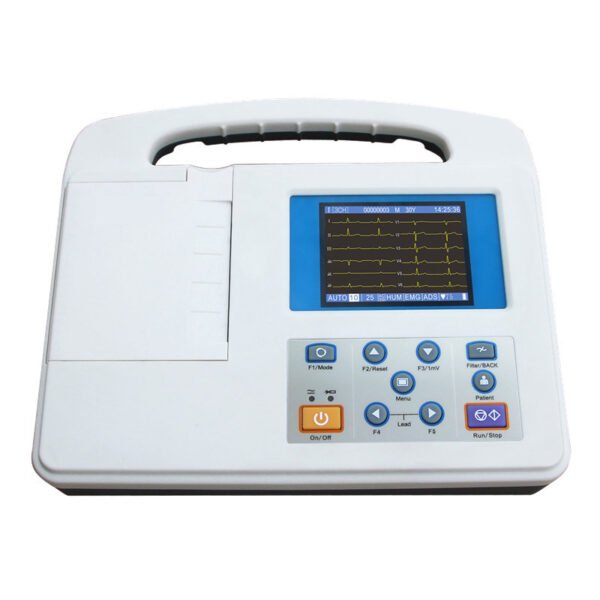

ECG-2303B Electrocardiogram 3RAY 3 Channel Machine

• Portable and delicate design, small size and light weight, easy to operate.
• 12 leads synchronous acquisition, sampling rate 32000Hz.
• High accuracy digital filter, automatic baseline adjustment.
• Working modes: Manual, Automatic, R-R, Store.
• 80mm, 3 channel recording, recording mode 1ch+, 3ch, 3ch+; With auto-interpretation to identify over 200 kinds of abnormal ECG.
• 320×240 graphic 3.5 inch color LCD to simultaneously display ECG.
• 250 patient cases storage and replay (SD card storage is optional).
• Rich menu settings to meet different using needs.
• Built-in 2200mAh rechargeable Li-ion battery. Charging time about 2.5 hours and continuous working time about 9 hours.
• USB/UART communication ports support USB storage, laser printing and PC ECG software (Optional).
